380 Kg "Single Door" Access Control Magnetic Lock - 836 LBS Holding Force - W/LED Status Indicator
The most popular model - EM 380LED - Single Door

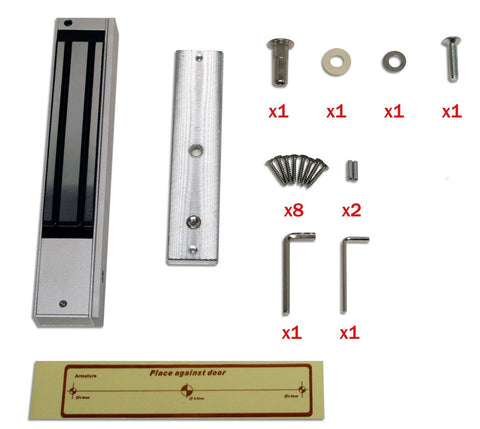

Included in EML package: 1 Electro Magnetic Lock, 1 Steel Plate, 1 Set of Mounting Bolts/Tools
Single Door EM Lock with LED light (Red/Green) indicator
- Dimension: 250Lx48.4Wx20H(mm)
- Holding Force: 380kg( 836 lbs)
- Suitable for: Wooden Door, Glass Door, Metal Door, and Fireproof Door.
- Product Weight: 5.4lbs
All mounting bolts included
Features
|
Product |
Electro magnetic Locks with LED |
|
Voltage |
DC12V and DC24V adjustable |
|
Main Features |
With LED and Feedback |
|
Current Draw |
12V/500mA 24V/250mA |
|
Holding Force |
380kg (836lbs) |
|
Lock Size |
285Lx55Wx30H(mm) |
|
Armature plate |
189Lx45Wx12H(mm) |
|
Suitable for |
Wooden door , Glass door ,Metal door , Fireproof door |
|
Surface Temp |
≤+20°C |
|
Operating Temp |
-10~+55°C(14-131F) |
|
Suitable Humidity |
0~90%(non-condensing) |
|
Finishes for Shell |
Anodized aluminum&surface texture processing |
|
Finishes for Magnetic |
Zinc |
|
Finishes for Armature |
Zinc |
|
Weight |
2.5kg |
Benefits:
With dual voltage of 12V and 24V, which can be adjusted by the voltage selector.
- Material of PCB enables a stable voltage and long life.
- Better aluminum and better plating.
Metal plate for the 380 EM lock - special surface design to enhance holding force.
