High performance metal EAS Security antenna system.
Features :
Wide detection with 3 Detection Bar
Main chip on the IC board made by the French STMicro, the largest semiconductor in Europe

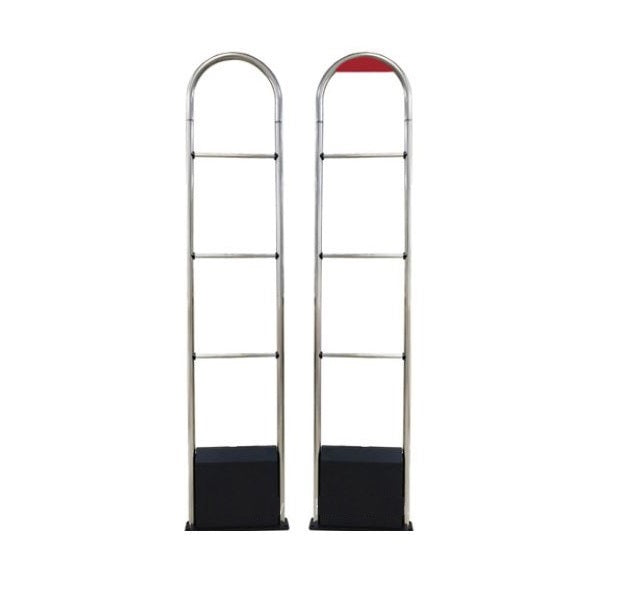

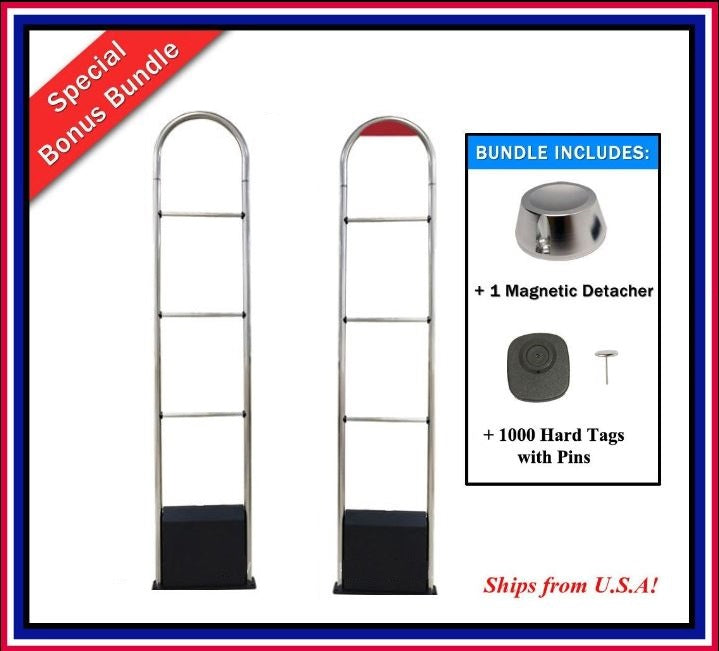

1. One set RF 8.2 MHz 3-Detection Bar Security Antenna ( 2 Towers - TX & RX )

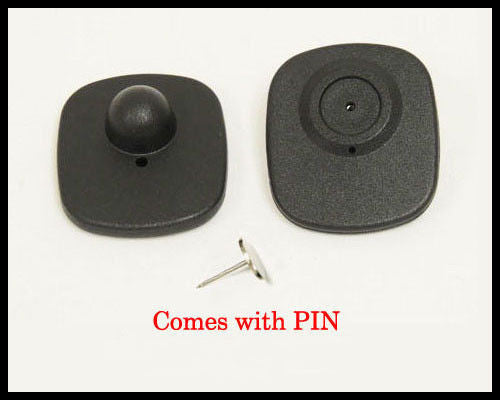

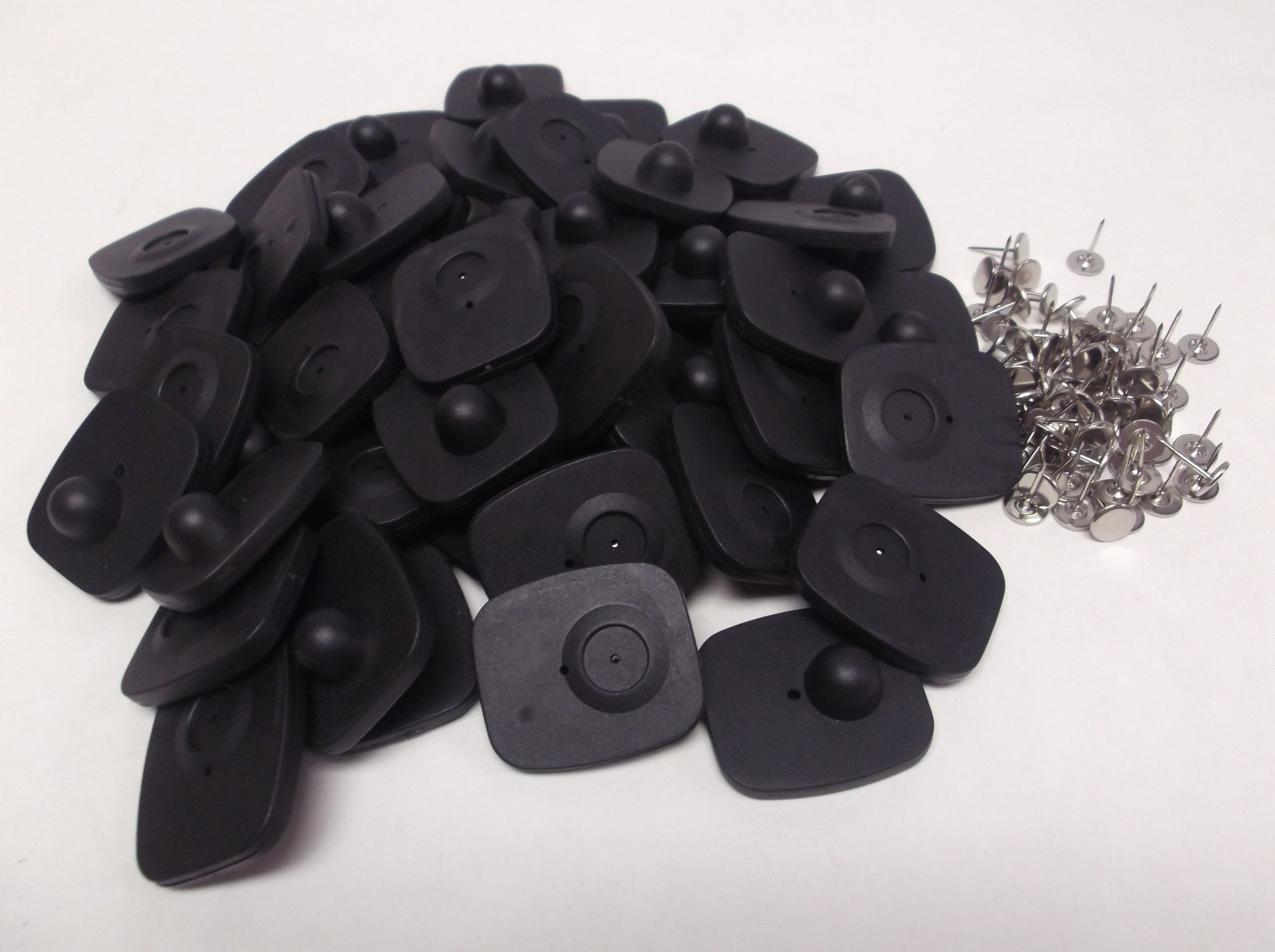

2. Black Mini Square Tag - 1000 pcs with 16mm pin

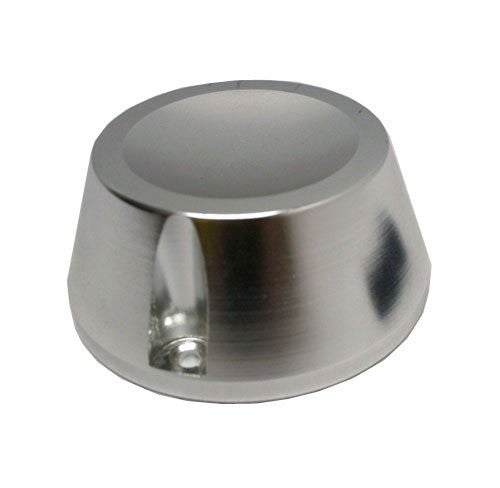

3. Universal Magnetic Detacher - 8000 Gs ( not cheap 4500 ~ 6500 Gs )
4. Power Box
5. Four anchor bolts for installation
Specifications:
Scanning Frequency: 8.2 MHz±0.05 MHz;
Scanning Bandwidth: 7.7-8.7 MHz;
Sensitivity switch on PC board
Power Source : 110V
( US 3 prong plug with Ground terminal to eliminate unwanted electrical charges - make the system more safer )
Detection Range Between Towers:
Soft label: 1.3M - 1.6M
Popular Mini SQ Hard tag: 1.4M - 1.7M
Large Hard tag: 1.5M- 1.8M
Sensitivity Control
Detection range can be adjusted by turning the " Sensitivity Control " button in order to get best detection result.
Clockwise - stronger
